Basic definitions : Muqarnas

Imam Mosque in Isfahan, Iran
Muqarnas :
the Muqarnas is basically a three-dimensional decoration of Islamic architecture.It was initially built to be structural in purpose made out of stone, but later on it became of a more crafted decoration and made of plaster, these clusters niches were used to decorate the area between the wall and the dome in Islamic architecture.
it can also be defined as : Honeycomb or stalactite vaulting.


The main pieces used for muqarnas and their flat projections
reference website : http://castera.net/entrelacs/public/articles/Z-M-Q.htm


Professor Shiro Takahashi has thoroughly documented the architectural records of the Muqarans with hundereds of details of its geometric plan views, in his documentation he has calssified them into three categories in attempt to clarify the formative styles of Muqarnas.

The three basic classifications are :
1) Square Style:

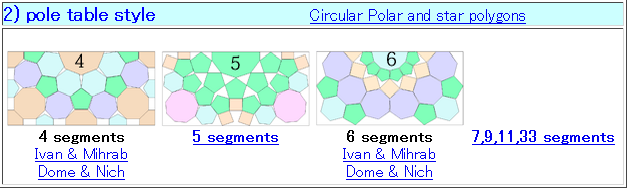

2) Pole table Style:






 3) Other styles :










I would highly recommend going to his website for a complete database of detailed plans for all the types of muqarnas in Islamic architecture thoroughly researched and analyzed.


A snapshot of Professor Shiro Takahashi's website


On the  www.designcoding.net website you will also be able to find a simple grasshopper definition  and a rhino file where these patterns are created. The design in simple but it is useful to understand the basics of creating these geometries in 3D.
http://www.designcoding.net/parametric-muqarnas/


If you are interested in creating some of these geometries yourself, you can find a research paper in www.academia.edu called (MUQARNAS RECONCEIVED - A BRIEF SURVEY: An Islamic Space-enclosing System - Techniques for Designing Muqarnas Forms), the paper explains the techniques and geometrical basis on how to design a Muqarnas.

Link of the pdf file here :
https://www.academia.edu/5734042/MUQARNAS_RECONCEIVED_-_A_BRIEF_SURVEY_An_Islamic_Space-enclosing_System_-_Techniques_for_Designing_Muqarnas_Forms



Muqarnas above the main entrance of the Al - Azhar Mosque, Cairo, Egypt

Muqarnas at the entrance of the Shah Mosque in Isfahan, Iran
Muqarnas examples in Damascus, Syria and Cairo, Egypt
Technical drawing #1 - Rectilinear and curvilinear muqarnas
Technical drawing - Muqarnas forming "stalactics"
Technical drawing - Muqarnas forming a transition from square to octagon
Technical drawing - Corner squinch in the form of a niche
Technical drawing - Sasanid corner squinch
Technical drawing - Muqarnas forming a transition from square to circle
Technical drawing - Muqarnas as a squinch of a cupola
Images reference :
Art of Islam, Language and Meaning (Library of Perennial Philosophy Sacred Art in Tradition)


Get the Book on Amazon:
